Roofing Fundamentals for the California General B Contractor License Exam

Test Your Knowledge

12 questions · Audio-based · Study on the go

This content is produced by Pass The CSLB, an independent educational channel. I am not a licensed contractor, attorney, or engineer — this is exam preparation material only, based on publicly available CSLB study resources. Nothing here constitutes legal, professional, or engineering advice. Exam content is set by PSI and the CSLB and may change — always verify current requirements against official CSLB materials. I cannot guarantee any exam outcome. Now let's get into it.

Before I walk you into roof types and slope tables, I want to plant something in your mind. There is one specific number in California roofing safety code that directly contradicts what federal training has told you. If you have sat through any occupational safety certification in the last twenty years, you have memorized the wrong answer for a California licensing exam. I will tell you exactly what that number is and why the difference exists. Keep that in the back of your mind as we go.

This episode covers roofing fundamentals — roof types and identification, slope and pitch thresholds, California fire code material restrictions, framing components, estimating by the square, flashing sequences, and the California-specific safety and legal numbers that catch experienced contractors off guard. Official preparation resources consistently identify roofing within the core trades section of the General B exam, which accounts for 30% of the total assessment.

I want to start with roof types. I know you know what a gable roof looks like. What I want to give you is the examiner's language for the structural characteristics and architectural implications that drive the questions.

The gable roof is the most common residential configuration in America. Two rectangular sloping planes meet at a central ridge, leaving triangular wall sections called gables at each end. Simple to frame, economical, excellent drainage. Its structural liability is exactly those vertical gable ends — flat surfaces with no aerodynamic profile. In a high-wind event they catch lateral pressure like a sail. That vulnerability is the reason the hip roof was developed.

A hip roof eliminates gable ends entirely. All four sides slope downward to the perimeter walls. No flat vertical faces. That continuous sloping profile deflects wind load rather than catching it. Hip roofs are the standard in coastal and storm-prone zones for exactly that reason. The tradeoffs are real — more complex framing, higher cost, less usable attic volume. Official preparation resources identify those tradeoffs as key content.

The mansard roof has two distinct slopes on all four sides. The lower slope is extremely steep, sometimes nearly vertical. The upper slope is shallow. Think of the old Second Empire buildings in San Francisco's Victorian neighborhoods — that steep lower face creates a full additional story of usable space inside the roof structure without technically adding building height. The gambrel does the same on two sides, leaving gable ends exposed. Think barn. The Dutch hip is the intelligent compromise — dominant hip structure with a small gable section inserted near the ridge ends.

When two wings of a building intersect at right angles, two junction types form. At exterior corners where sloped planes face outward: a hip. At interior corners where sloped planes face inward: a valley. Valleys concentrate the drainage from two converging roof planes and are the single most vulnerable water intrusion point in any roofing assembly.

Dormers: a shed dormer offers maximum interior headroom and floor width. A gable dormer has its own peaked miniature roof. The eyebrow dormer is a continuous wave-like arch without vertical sidewalls — architecturally distinctive, requiring advanced carpentry and flexible materials. Official preparation resources specifically note the eyebrow dormer as a testable identification item.

Before I get into slope, I want to tell you the story that explains an entire section of California code. In October 1991, fire started in the Oakland and Berkeley hills. Within hours it had killed 25 people and destroyed nearly 3,000 structures. The Tunnel Fire became one of the most destructive urban fires in California history. Investigators found that untreated wood shake roofing was a primary fire spread mechanism — burning embers ignited shake roofs and the fire jumped from structure to structure faster than wind alone could explain. The shakes were acting as stepping stones.

That fire drove California to create Very High Fire Hazard Severity Zones and to write CBC Chapter 7A alongside Health and Safety Code Section 13132.7. The language: wood shakes and shingles are prohibited in designated Very High Fire Hazard Severity Zones — not restricted, not conditionally permitted, prohibited. The prohibition applies regardless of any fire-retardant treatment the product carries, and regardless of any Class A fire resistance rating. No treatment overrides it.

Official preparation resources specifically cover whether candidates know that the rating becomes irrelevant inside a designated zone. The answer is prohibited.

Now slope. Memory anchor — the Blackjack System. The five key slope numbers: 1/4, 2, 4, 8, 21. Quarter. Two. Four. Eight. Blackjack. Quarter is the flat roof minimum. Two starts the low-slope zone. Four is the standard minimum for asphalt shingles. Eight is the walkability limit. Twenty-one is mansard territory.

1/4:12 is the code minimum for positive drainage on flat roofs. A perfectly level surface is a pond waiting to happen.

2:12 to 4:12 — the yellow zone. Asphalt shingles are permitted here but require double underlayment. At shallow angles water moves slowly and becomes vulnerable to wind-driven backflow and capillary action. A single underlayment layer cannot resist that. Two can. 3:12 slope with asphalt shingles: double underlayment is the answer.

4:12 is the standard minimum for asphalt shingles without low-slope modifications. The most directly testable slope number for shingle roofing.

8:12 is the walkability limit. Above it, roof brackets, specialized staging, or personal fall arrest systems are required.

21:12 — blackjack — is where standard shingle installation stops working. Every shingle has a factory adhesive strip that bonds under compressive weight. At 21:12 the shingle is nearly vertical. Press tape to a nearly-upright surface — the tape slides. No compression, no bond. The first serious wind lifts those tabs. The code response: 6 nails per shingle instead of 4, plus manual hand-sealing — a dab of asphalt cement behind every tab by hand. Skip either requirement and you have a documented failure waiting for a storm.

Materials. Three functional layers: steep-slope surface materials, low-slope membrane systems, and underlayment.

Asphalt shingles dominate residential construction. Standard installation at 4:12 and above: 4 nails per shingle. In the 2:12 to 4:12 zone: 4 nails plus double underlayment. Above 21:12: 6 nails plus hand-sealing. Nail penetration: minimum 3/4 in. into sheathing. Standard OSB sheathing is 15/32 in. thick — less than 3/4 in. When sheathing is thinner than 3/4 in., the nail must go completely through.

Clay and concrete tile: clay runs 600–1,000 lbs. per square; concrete runs 900–1,200 lbs. Structural engineering verification required when materials exceed 6 psf. Tile routinely crosses that threshold.

Low-slope membranes. Memory anchor: tape, weld, weld-grease.

EPDM (Ethylene Propylene Diene Monomer) — synthetic rubber, seams bonded by contact adhesive or tape. Not heat-welded. Tape.

TPO (Thermoplastic Polyolefin) — white reflective membrane, seams heat-welded. Weld.

PVC (Polyvinyl Chloride) — heat-welded seams, superior grease resistance. Preferred near food service exhaust. Weld-grease.

All three require a minimum slope of 1/4:12. SBS modified bitumen: cold-weather flexibility. APP modified bitumen: UV resistance, typically torch-applied. Both are low-slope products at 1/4:12 minimum.

California Title 24 Energy Code requires Cool Roof certification for many commercial re-roofs. Two metrics from the Cool Roof Rating Council: aged solar reflectance and thermal emittance. High scores on both reduce mechanical cooling loads.

Ice and water shield: required in California at elevations of 4,000 ft. and above. Must extend from the lowest roof edge to at least 24 in. inside the interior face of the exterior wall line. Interior face — not exterior face, not the sheathing edge.

Roof framing components. Ridge board versus ridge beam. Two people leaning foreheads together — that is the ridge board system. Opposing rafters in compression, ridge board just positions them. Consequence: outward thrust on the walls. Ceiling joists or rafter ties at the bottom must resist that thrust. Remove them without compensation and the walls spread. Ridge board carries zero load.

Chin-up bar bolted to the ceiling — that is the ridge beam. Rafters hang from it. Structural, supported at both ends by posts. Required for vaulted ceilings and when slope is below 3:12.

Rafter ties versus collar ties: low ties walls, high stops pull.

Rafter ties are in the lower 1/3 of the attic. They tie the exterior walls together and resist outward thrust. Collar ties are in the upper 1/3. They resist wind uplift pulling rafters apart at the ridge. Different elevation. Different force. Different function.

Valley rafters carry accumulated loads from both converging planes like a sloped floor girder. Size it wrong and the valley sags visibly over time.

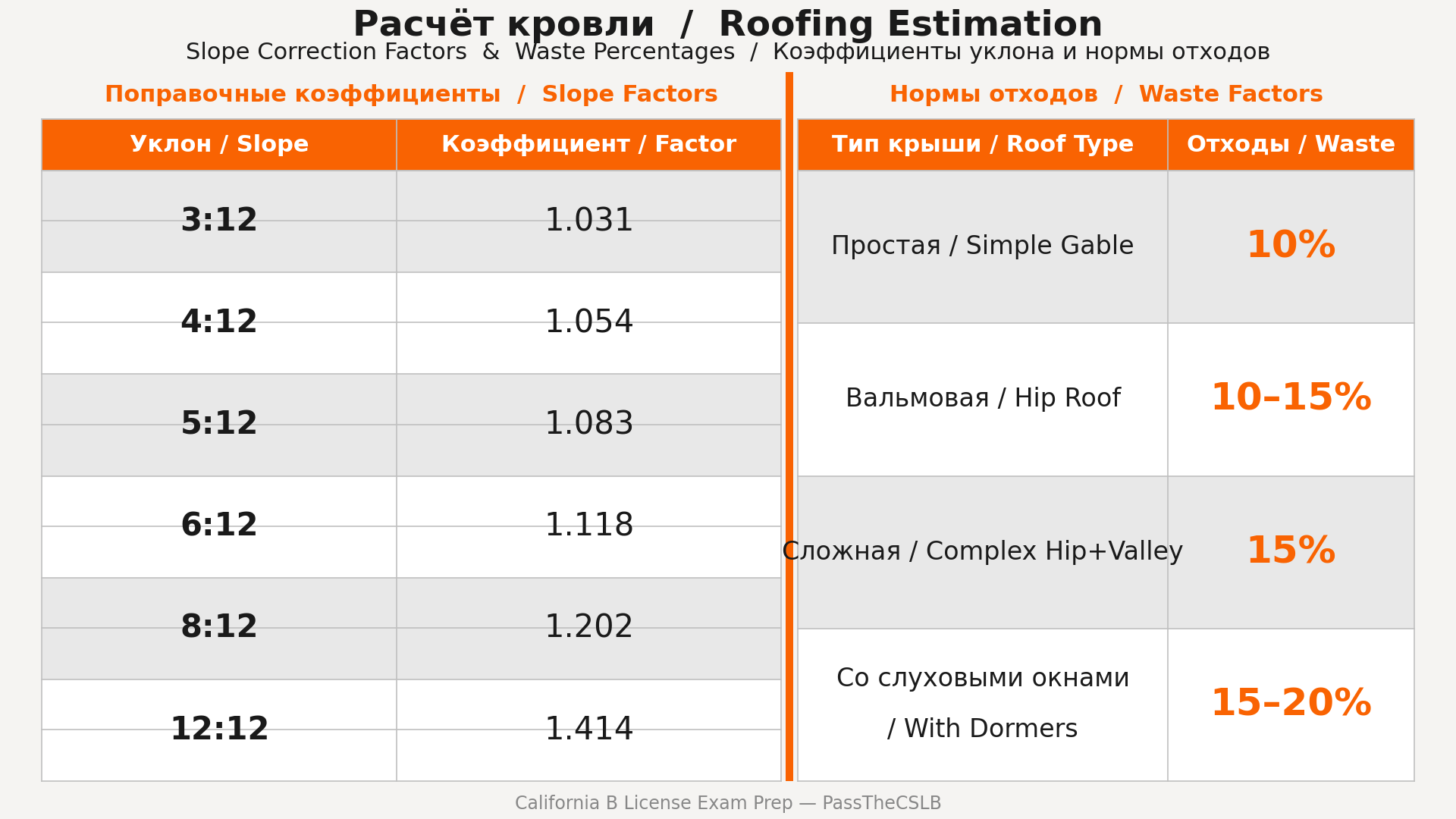

Estimating. One roofing square = 100 sq. ft. The most common error: using flat plan area as roof area. A sloped roof covers substantially more surface. At 12:12, actual surface area is 41.4% larger than the plan view.

To get true roof area, multiply flat plan area including overhangs by the slope correction factor. 6:12 = 1.118. 8:12 = 1.202. 12:12 = 1.414.

Example: 40 ft. x 50 ft. building, gable, 6:12, 2 ft. overhangs on long sides, 1 ft. on short ends. Plan area: 52 x 44 = 2,288 sq. ft. Apply factor: 2,288 x 1.118 = 2,558 sq. ft. Divide by 100: 25.57 squares. Add 10% waste: 28.1 squares. Round up to 29 squares. At 3 bundles per square: 87 bundles.

Field shingles and underlayment — estimated by the square. Starter strips, ridge caps, drip edge, step flashing — by the linear foot. Pipe boots and kickout flashing — by unit. Waste: 10% for simple gable, 10–15% for hip, 15–20% for complex cut-up.

Flashing. One principle: gravity is your only reliable waterproofing agent. Every component must position water on top of the material below — never behind it.

At the eave: drip edge to the deck first, underlayment over it. Reverse this and water wicks behind the metal into the fascia — invisible rot until the callback comes.

At the rake: underlayment first, drip edge over it. Wind-driven rain pushes sideways at gable ends. The drip edge clamps the underlayment edge against the deck.

Eave under, rake over. Overlap sections minimum 2 in. Fasteners maximum 12 in. on center.

California valley underlayment: minimum 36 in. wide. Some materials cite 24 in. — that is the IRC number. California is stricter. 36 in. for the California exam.

Chimney flashing: step flashing woven per shingle course, counter flashing embedded in masonry mortar joints and folded down over step flashing. Think of a telescope — two cylinders overlapping and sliding independently. When the chimney and roof move differently, the connection stays watertight because neither piece is rigidly fixed to the other.

Cricket required when chimney width perpendicular to slope exceeds 30 in.

The number I promised at the start: federal fall protection training says 6 ft. for warning line placement. California Title 8 Section 1730 says 5 ft. from the unprotected edge on low-slope commercial roofs. On a California exam, 6 ft. is the wrong answer for this specific question.

Roof jack systems: personal safety lines required when slope exceeds 7:12. California Title 8 Section 1724.

Parapets: minimum 24 in. high to qualify as sole fall protection method.

Heat illness — California Title 8 Section 3395. At 80°F: shade must be present and accessible. At 95°F: high-heat procedures activate — check-ins, buddy systems, pre-shift review. Workers may take a 5-minute cool-down rest in shade whenever they feel they need it. No supervisor approval required.

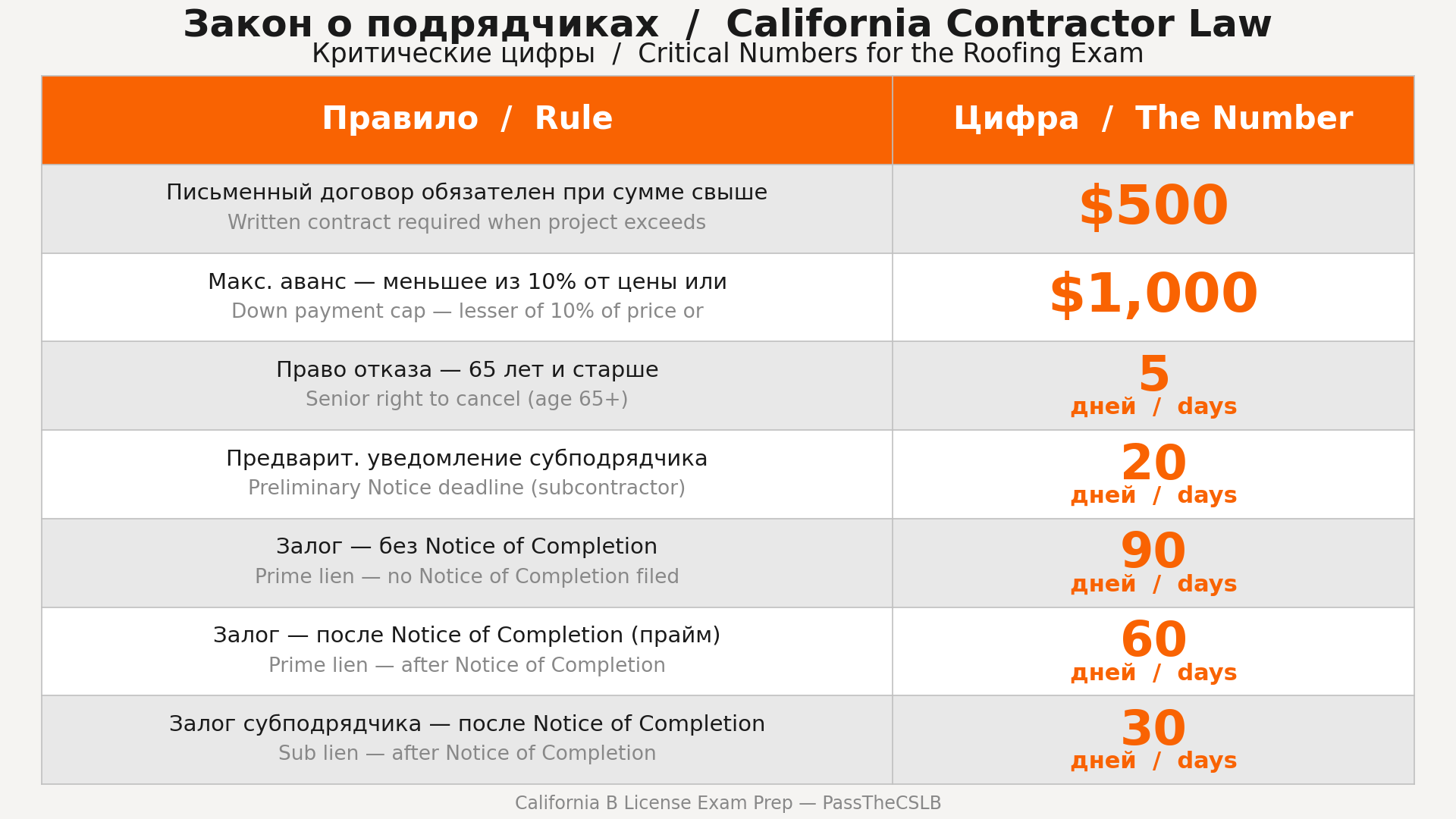

Contractor law mnemonic: five hundred triggers the paper, one thousand caps the down, twenty days to notice, ninety-sixty-thirty on the lien, three to cancel — five if sixty-five.

$500 triggers the written contract under BPC Section 7159. Mechanics lien warning required in 12-point boldface type.

Down payment cap: lesser of 10% or $1,000. On a $20,000 contract: 10% = $2,000, but $1,000 is the cap. On a $6,000 contract: 10% = $600, which is the cap. Collecting more is a potential misdemeanor. The CSLB can suspend your license for it.

20 days for subcontractor Preliminary Notice. 90 days for prime lien with no Notice of Completion. 60 days for prime after Notice of Completion. 30 days for subcontractor after Notice of Completion.

3 days to cancel for standard homeowners. 5 days for homeowners age 65 and older.

The workers' compensation trap: a General B sole proprietor with no employees can file a workers' comp exemption. A C-39 Roofing contractor cannot — not as a sole proprietor, not with zero employees, not ever. BPC Section 7125 classifies C-39 as a high-risk trade with no exemption available. The exemption that is open to a General B in the same business situation does not exist for a C-39. Know that before you ever touch an exemption form.

General B contractors can self-perform rooftop solar installation without a C-39 or solar specialty license. California recognizes solar as inherently involving two or more unrelated trades — structural and electrical — placing it within General B scope.

Recap: slope — quarter, two, four, eight, blackjack. Materials — wood shakes prohibited in Very High zones regardless of treatment; 6 psf triggers engineering; tape, weld, weld-grease for membranes. Framing — low ties walls, high stops pull. Estimating — 100 sq. ft. per square, multiply by slope factor, 10% gable waste, 15% complex, 3 bundles per square. Flashing — eave under rake over, 36 in. valley California, cricket at 30 in. Safety — 5 ft. warning lines, shade at 80°F, high heat at 95°F. Law — $500 contract trigger, $1,000 or 10% down cap, 20-day notice, 90-60-30 lien, 3-day cancel / 5 if 65+. C-39 cannot claim workers' comp exemption. Ever.

I know you are not studying from a desk with a highlighter. You are living your life and fitting this in between jobs and calls. I built the practice quiz for this episode around that reality. It is audio-based — 12 questions, read aloud, you answer by tapping. No reading required. Go to the description below this video. You will see a link that says PassTheCSLB. Tap it. It will take you straight there.

If anything I covered did not land — a number that still feels slippery, a rule you want me to go deeper on — put it in the comments. I read every one and I answer them.

Subscribe if you are working toward this license. I am building this series episode by episode through every section of the General B exam. Every testable number, every California-specific deviation. You stay subscribed, you stay on track. Now go get it.
